COMFORT

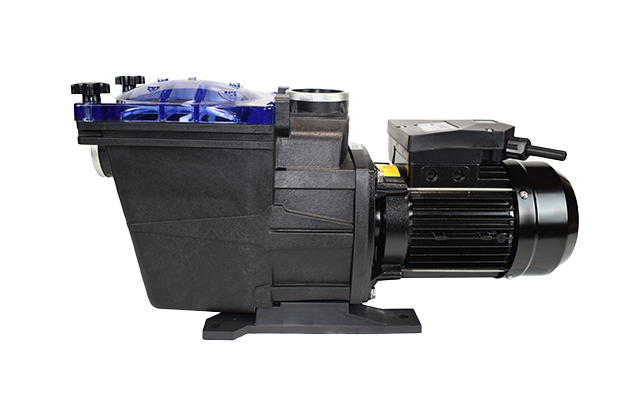

ND.1
The senior one
The ND.1 has been at your service for generations,
being the heart of your pool.
The extensive range of the ND.1 series allows optimal performance up to 2HP since more than 40 years.
Features
- Self-priming up to 4mwh
- Suitable for operation with salt chlorinators and sea water
- Available with high efficiency three phase motor class IE3 according to regulation (UE) 2019/1781
- Thermal protector incorporated in single-phase version
- Insulation Class: F
- Protection: IP55
- Motor: 50Hz/2900 rpm available also at 60Hz
- Motor painting by cataphoresis
- Tmax: 40ºC
Materials
- Pump housing: Polypropylene + 30% GF
- Impeller and Diffuser: PPO + 30% GF
- Shaft: Stainless steel AISI 316
- Mechanical Seal: Carbon + Resin – Ceramics
- Prefilter cover: SAN
- Prefilter basket: Polypropylene +20% GF
Downloads
|
Type
|
Power
|
Cond.
µF |
II
230V A |
III
230V A |
III
400V A |
IE3 | Head (m) | Connections |
Weight Kg
|
|||||||||||
|
III
230V A |
III
400V A |
4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 19 |
DN
|
|||||||||
|
Flow rate (m³/h)
|
||||||||||||||||||||
| kW | HP | IN | OUT | |||||||||||||||||
| ND.1-09 | 0,37 | 0,5 | 16 | 3,0 | – | – | – | – | 15,3 | 12,8 | 10,3 | 7,8 | 4,4 | – | – | – | – | 2″ | 2″ | 10,4 |
| ND.1-14 | 0,6 | 0,8 | 16 | 4,0 | 2,5 | 1,6 | 2,4 | 1,3 | 17,6 | 15,7 | 13,8 | 11,8 | 9,2 | 6,1 | 0,7 | – | – | 2″ | 2″ | 13,6 |
| ND.1-19 | 0,75 | 1 | 20 | 4,8 | 3,0 | 1,9 | 2,9 | 1,7 | 22,5 | 20,4 | 18,3 | 15,9 | 13,5 | 10,7 | 6,8 | 2,3 | – | 2″ | 2″ | 13,7 |
| ND.1-24 | 1,1 | 1,5 | 30 | 6,6 | 4,2 | 2,5 | 3,8 | 2,2 | 27,9 | 25,8 | 23,5 | 20,9 | 18,1 | 15,0 | 10,4 | 4,2 | – | 2″ | 2″ | 17,1 |
| ND.1-28 | 1,5 | 2 | 40 | 8,9 | 5,6 | 3,3 | 5,0 | 2,9 | 32,1 | 30,2 | 27,5 | 24,7 | 21,9 | 18,6 | 13,9 | 8,2 | 4,2 | 2″ | 2″ | 19,0 |
